Darkfield Lights

Darkfield Lights

Dark field LED lights use a light plane parallel to the examined surface to highlight the structure or irregularities of the surface in high contrast.

We are constantly expanding our product range, but if you still can't find a product that meets your needs in the table, ask for our unique offer at the e-mail address office@omi-optika.hu!
  • Products
  • Technical Details
  • Accesories
 Megrendelési szám/
Product Number
DesignationSzabad átmérő/
Free Aperture (mm)
Befoglaló méretek/
Dimensions (mm)
Megvilágított terület / Light field size (mm)Meghajtás/
Input
Szín/
Colour
Adatlap/
Datasheet
Nettó ár/
Price

3-067-000Darkfield LightØ60100 x 100 x 10ø6024V DCVörös / Red3-067-000.pdf
3-071-000'Daisy' Darkfield LightØ19Ø35 x 38ø1912V DC
0,8W
Vörös/ Red3-071-000.pdf

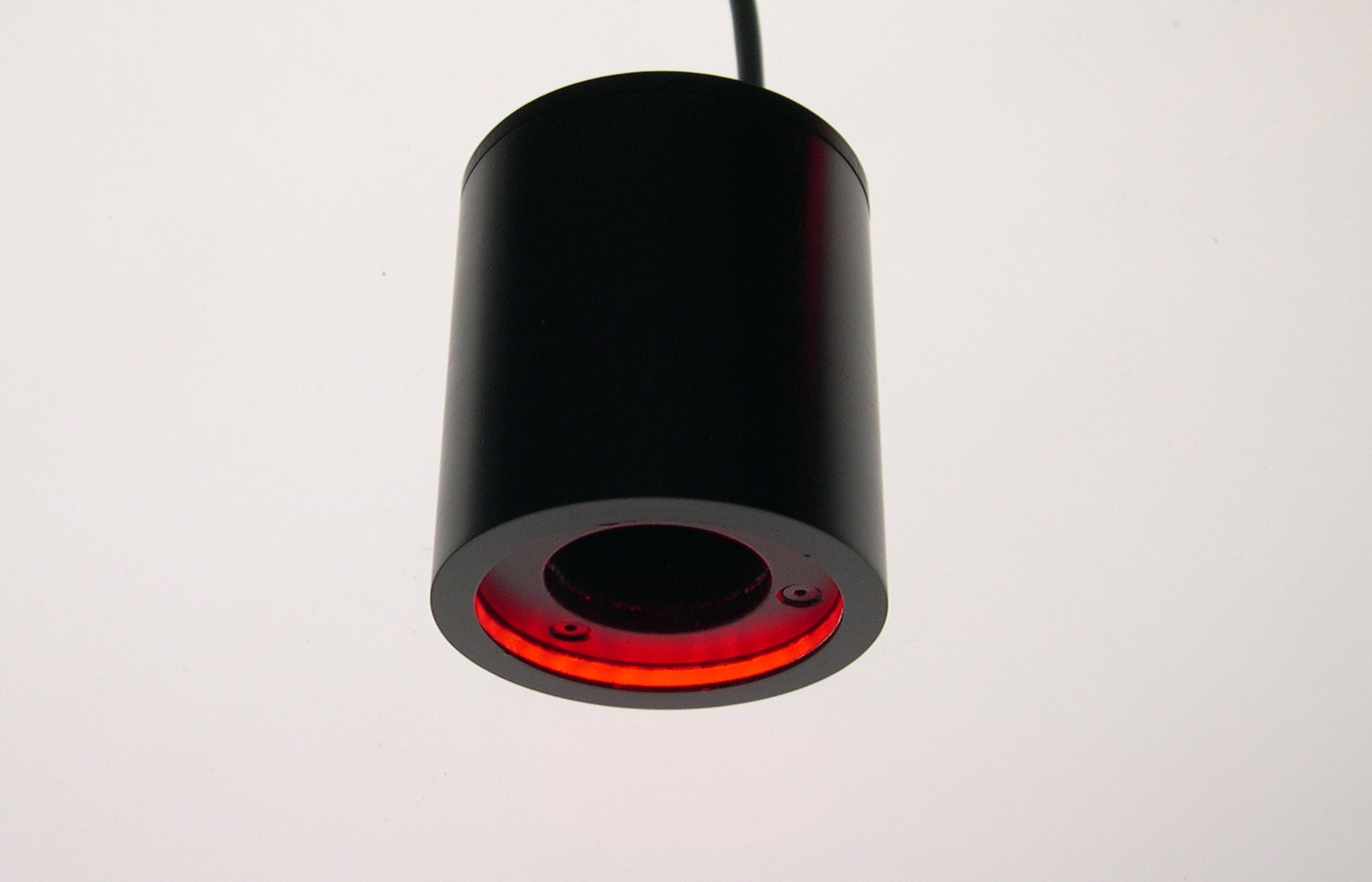

3-071-010'Daisy' Darkfield LightØ19Ø35 x 56ø1912V DC
1W
Vörös/ Red3-071-010.pdf
3-071-020'Daisy' Darkfield LightØ20Ø35 x 10012V DCVörös/ Red
3-071-050'Daisy' Darkfield LightØ18Ø35 x 5612V DCVörös/ Red
3-071-400'Daisy' Darkfield LightØ25Ø50 x 56ø2524V DC
3W
Vörös/ Red3-071-400.pdf
3-071-500'Daisy' Darkfield LightØ16Ø30 x 56ø1612V DC
1W
Vörös/ Red3-071-500-HU-EN.pdf
3-071-700'Daisy' Darkfield LightØ22Ø50 x 56ø2212V DC
2,4W
Vörös/ Red3-071-700.pdf

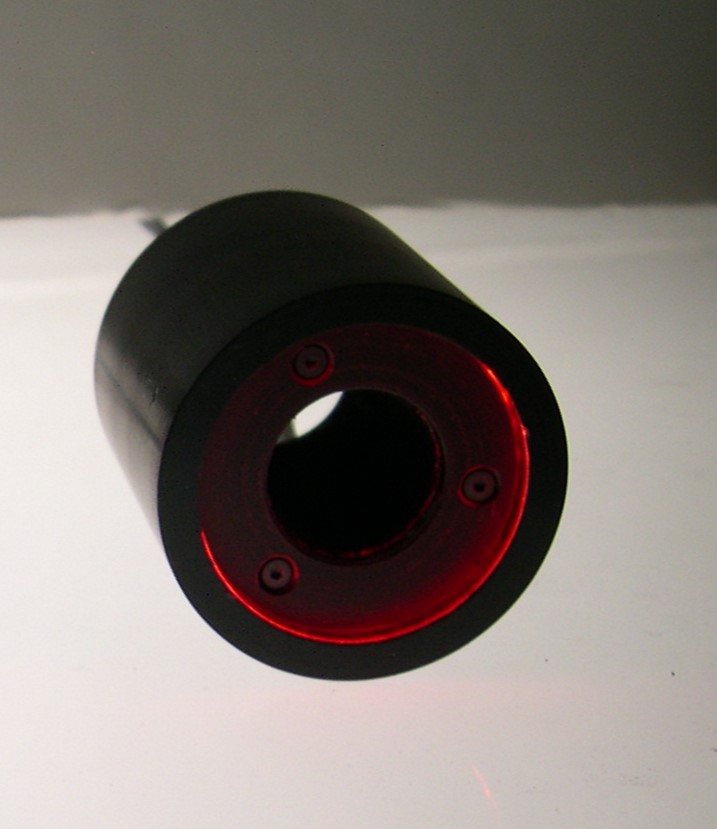

3-071-800'Daisy' Darkfield LightØ19Ø40 x 56ø1912V DC
1,9W
Vörös/ Red3-071-800.pdf
3-071-850'Daisy' Darkfield LightØ20Ø38 x 56ø2012V DCVörös/ Red3-071-850.pdf

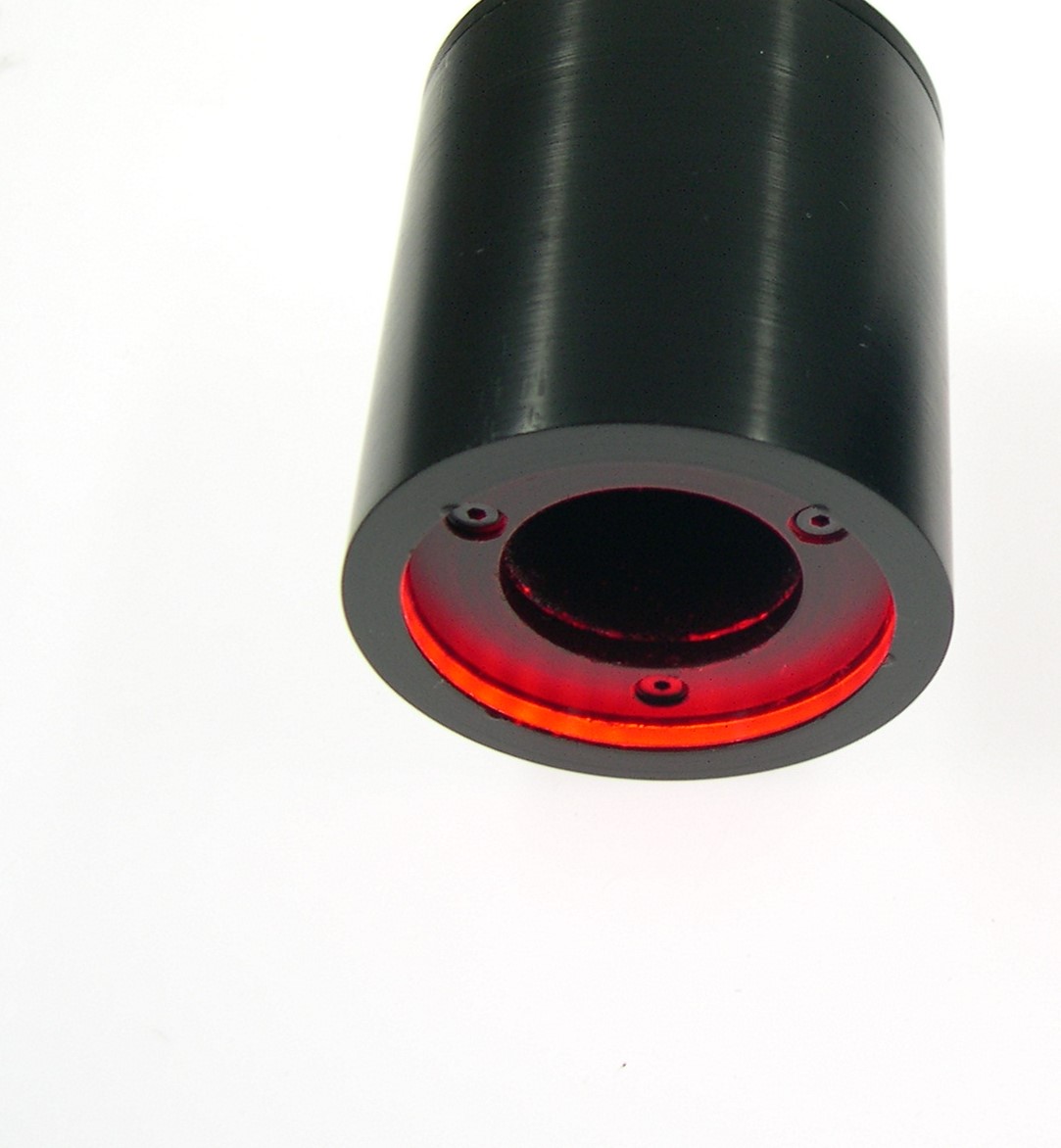

3-071-900'Daisy' Darkfield LightØ19Ø46 x 56ø1912V DC
2,1W
Vörös/ Red3-071-900-HU-EN.pdf
3-077-000Darkfield LightØ100150 x 150 x 10ø10024V DCVörös/ Red3-077-000.pdf
3-078-000Darkfield LightØ100150 x 150 x 10ø10012V DCVörös/ Red3-078-000.pdf
3-078-020Darkfield LightØ100150 x 150 x 10ø10024V DCInfra3-078-020.pdf
3-084-000'Daisy' Darkfield LightØ19Ø35 x 56Ø1912V DC
0,7W
Vörös/ Red3-084-000.pdf
- Send your request for a quote to office@omi-optika.hu by clicking on the button next to the product, after filling in the required data or - if it is more convenient - from your own account.
  • white, UV, blue, green, red or infrared (NIR) light
  • power supply: 12VDC, 24 VDC or current generator drive (please specify when ordering)
  • can be ordered with a standard or triggerable power supply
  • continuous or pulse mode (power dependent)
  • extra long life
  • robust, anodized aluminum or plastic housing
  • can be used in industrial environment
  • custom size or design can be ordered
