SPOT Backlights - OMI Optika

SPOT Backlights

SPOT Backlights

Extra high intensity background light for short, even microsecond exposures. Simple, easy to install, maintain and replace. It is also suitable for use in equipment where there is little space.

We are constantly expanding our product range, but if you still can't find a product that meets your needs in the table, ask for our unique offer at the e-mail address office@omi-optika.hu!
  • Models
  • Technical Details
  • Accesories
 Megrendelési szám/
Product Number
DesignationVilágító felület/
Active Surface (mm)
Befoglaló méretek/
Dimensions (mm)
Meghajtás/
Input
Szín/
Colour
Adatlap/
Datasheet
Nettó ár/
Price

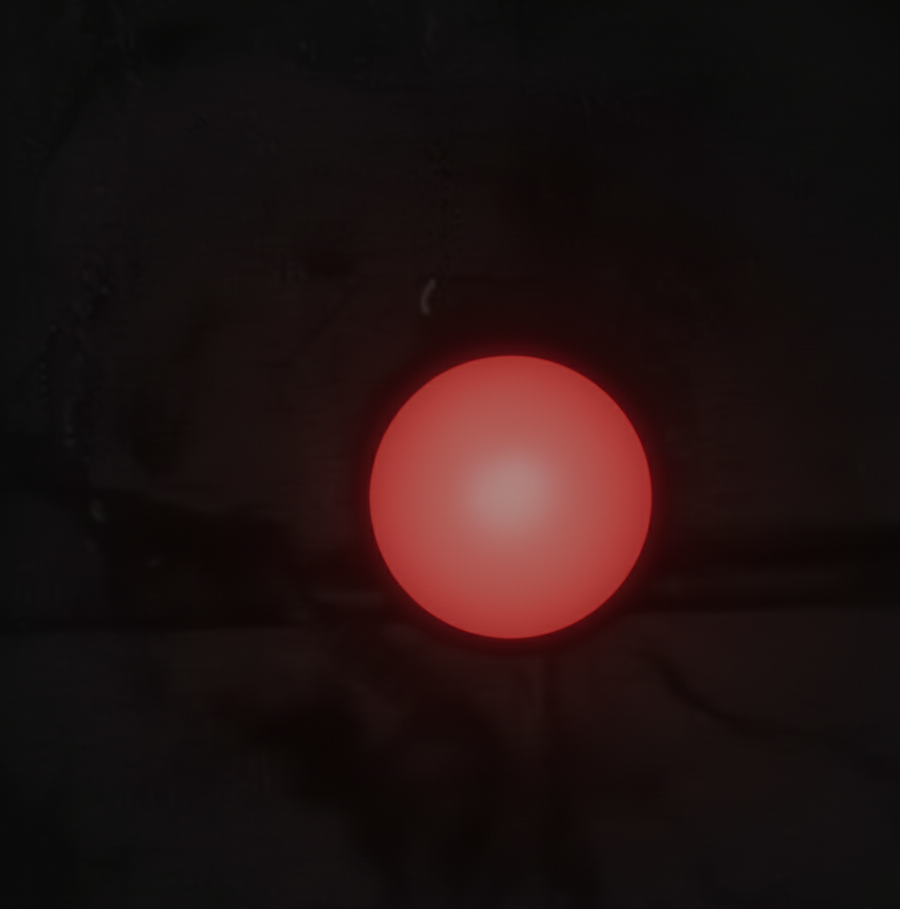

3-420-000SPOT LED BacklightØ23Ø25 x 50max. 700mAVörös3-420-000.pdf

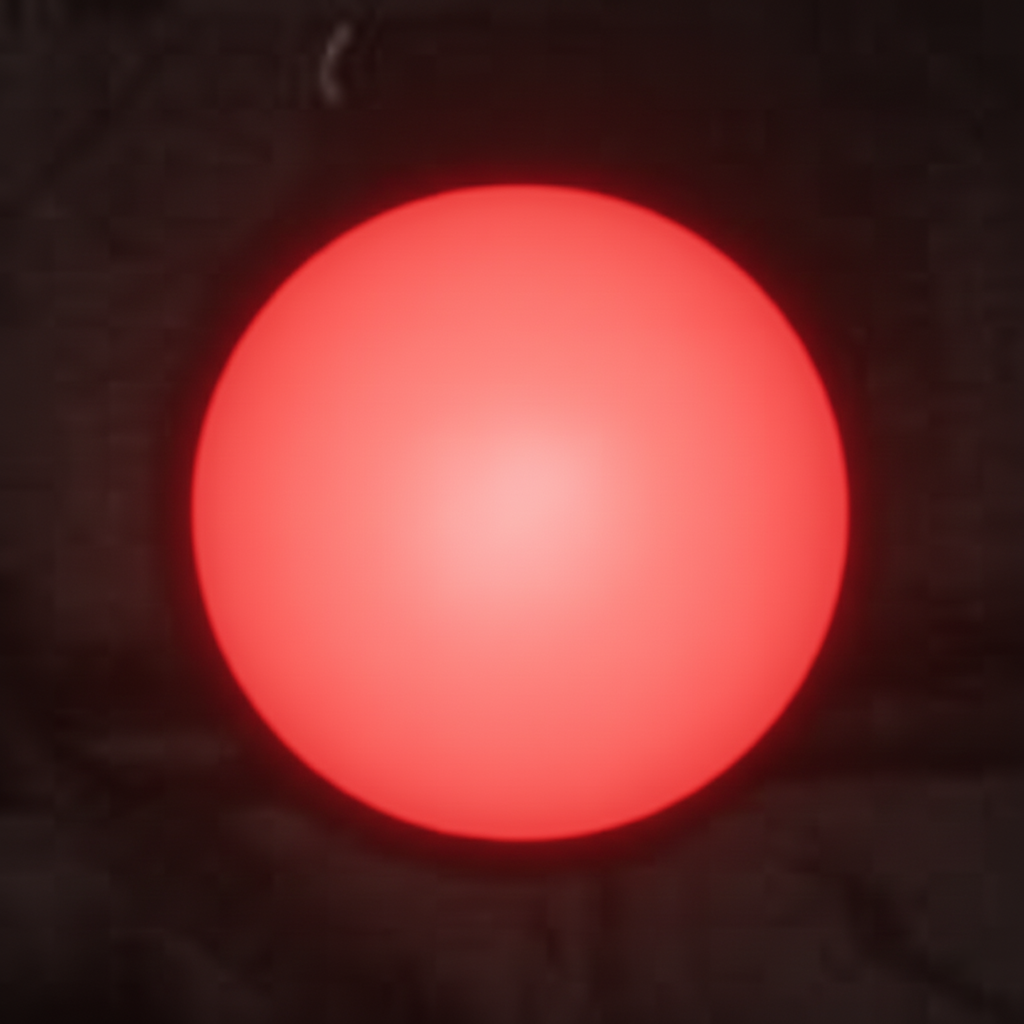

3-421-000SPOT LED BacklightØ33Ø40/Ø25 x 75max. 700mAVörös3-421-000.pdf
3-421-100SPOT LED BacklightØ33Ø40/Ø25 x 75max. 700mAVörös3-421-100.pdf
3-456-700SPOT LED Backlight36 x 3640 x 40 x 40max. 700mAFehér3-456-700.pdf
3-456-750SPOT LED Backlight36 x 3640 x 40 x 4024V DCFehér3-456-750_HU-EN.pdf
3-052-000SPOT LED Backlight56 x 3660 x 40 x 40max. 700mAFehér3-456-800.pdf
- Send your request for a quote to office@omi-optika.hu by clicking on the button next to the product, after filling in the required data or - if it is more convenient - from your own account.
  • LED power: max 3W
  • extra high brightness
  • homogeneous intensity distribution
  • beam angle: 10°, 30°, 50° or 10 x 50°
  • white, UV, blue, green, yellow, red or infrared (NIR) light
  • power supply: current generator drive
  • can be ordered with a standard or triggerable power supply
  • continuous or pulse mode (power dependent)
  • extra long life time
  • compact size, anodized aluminum housing with passive cooling
  • size: ø40/ø25 x 50 mm
  • mounting with M4 screw or semi-rigid throat tube
  • cable outlet on the side
  • IP65 version on request can be used well in industrial environments
