| Megrendelési szám/ Product Number | Designation | Világító felület/ Active Surface (mm) | Befoglaló méretek/ Dimensions (mm) | Meghajtás/ Input | Szín/ Colour | Adatlap/ Datasheet | Nettó ár/ Price | ||
|---|---|---|---|---|---|---|---|---|---|
 "3-240-000-large-area-backlight") | 3-240-000 | Ultra-Slim Large Area LED Backlight | 200 x 200 | 240 x 235 x 10 | 24V DC | Vörös | 3-240-000.pdf | ||

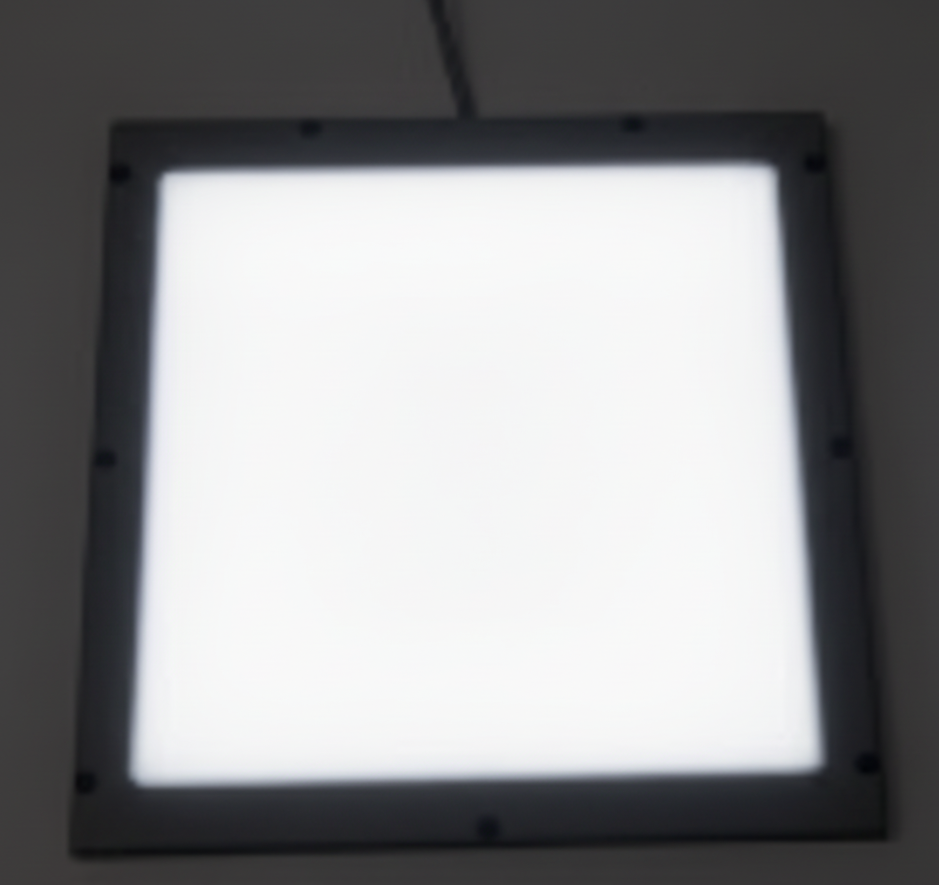

 | 3-240-600 | Ultra-Slim Large Area LED Backlight | 200 x 200 | 240 x 235 x 10 | 24V DC | Fehér | 3-240-600.pdf | ||
 "3-241-000-large-area-backlight") | 3-241-000 | Ultra-Slim Large Area LED Backlight | 140 x 120 | 180 x 180 x 10 | 24V DC | Vörös | 3-241-000.pdf | ||

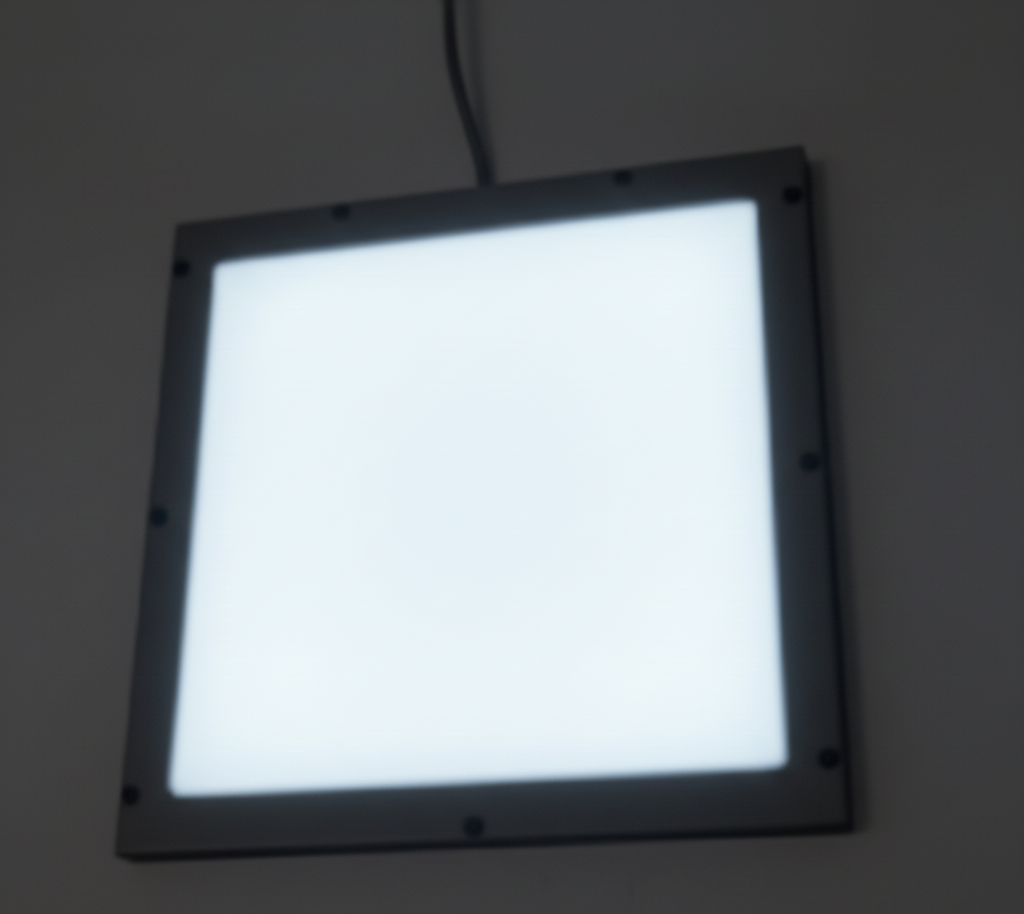

 "woocommerce-placeholder-1-1") | 3-241-600 | Ultra-Slim Large Area LED Backlight | 140 x 140 | 180 x 180 x 10 | 24V DC | Fehér | 3-241-600.pdf | ||

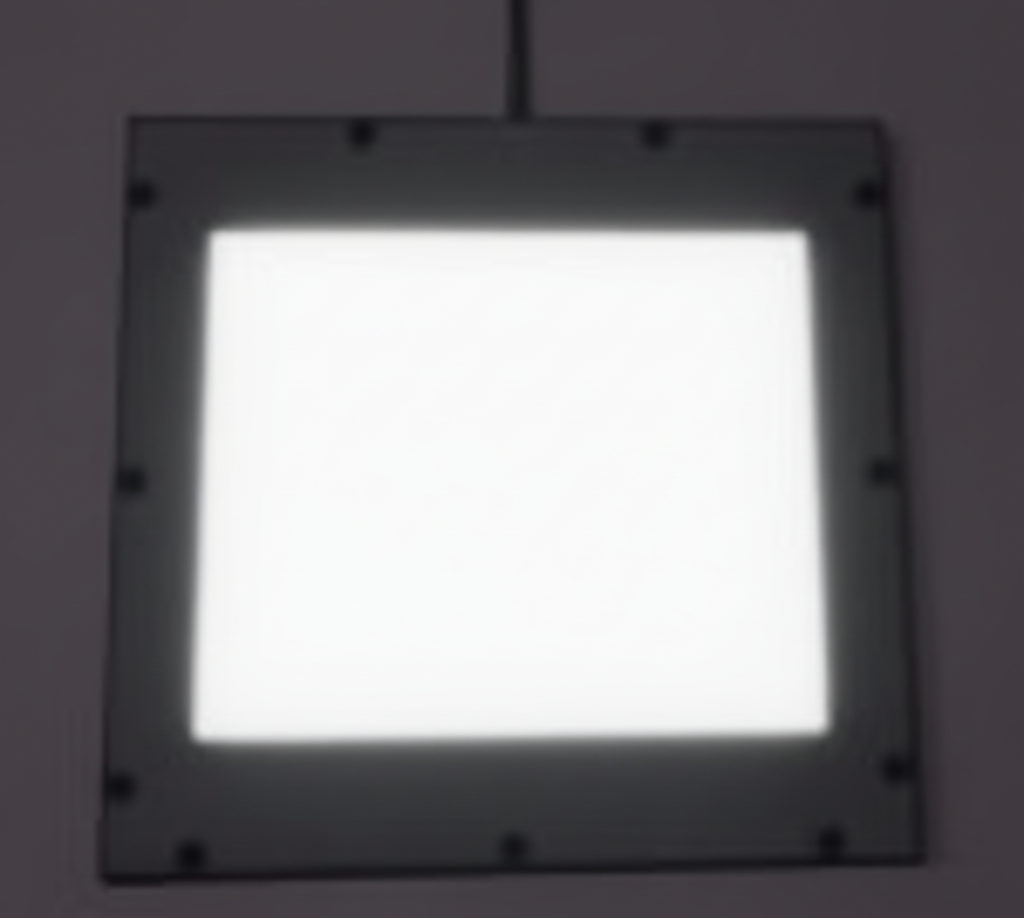

| 3-242-000 | Ultra-Slim Large Area LED Backlight | 100 x 80 | 133 x 133 x 10 | 24V DC | Fehér | 3-242-000.pdf | ||
 "3-247-000-large-area-backlight") | 3-247-000 | Ultra-Slim Large Area LED Backlight | 340 x 200 | 380 x 240 x 10 | 24V DC | Vörös | 3-247-000_HU-EN.pdf | ||
 "3-247-800-large-area-backlight") | 3-247-800 | Ultra-Slim Large Area LED Backlight | 280 x 190 | 310 x 220 x 10 | 24V DC | Vörös | 3-247-800.pdf | ||
 "3-249-000_backlight") | 3-249-000 | Ultra-Slim Large Area LED Backlight | 110 x 110 | 140 x 140 x 10 | 24V DC | Vörös | 3-249-000_HU-EN.pdf | ||
 "3-251-000-large-area-backlight") | 3-251-000 | Ultra-Slim Large Area LED Backlight | 350 x 300 | 400 x 350 x 10 | 24V DC | Fehér | |||
 "DSCN0418") | 3-252-000 | Ultra-Slim Large Area LED Backlight | 400 x 350 | 450 x 400 x 10 | 24V DC / 28W | Fehér | 3-252-000_HU-EN.pdf |
- Send your request for a quote to office@omi-optika.hu by clicking on the button next to the product, after filling in the required data or - if it is more convenient - from your own account.
- white, UV, blue, green, red or infrared (NIR) light
- power supply: 12VDC, 24 VDC or current generator drive (please specify when ordering)
- homogeneous intensity distribution
- can be ordered with a standard or triggerable power supply
- continuous or pulse mode (power dependent)
- extra long life
- robust, anodized aluminum or plastic housing
- glass or plastic light field
- can be used in industrial environment
- optionally; lighting surface up to the edge of the house on one side
- custom size or design can be ordered
