Matrix Backlights

Matrix Backlight

Homogeneous backlighting for high-contrast display of the contour line of objects which can also be used as diffuse lighting.

- typical thickness: 12 – 22 mm
- lighting surface size: ~< 50 mm x < 50 mm
- optimal space requirements, large surface area, compact size

We are constantly expanding our product range, but if you still can't find a product that meets your needs in the table, ask for our unique offer at the e-mail address office@omi-optika.hu!
  • Models
  • Technical Details
  • Accesories
 Megrendelési szám/
Product Number
DesignationVilágító felület/
Active Surface (mm)
Befoglaló méretek/
Dimensions (mm)
Meghajtás/
Input
Szín/
Colour
Adatlap/
Datasheet
Nettó ár/
Price

3-100-000Matrix LED Backlight40 x 3551.5 x 40 x 2012V DCVörös3-100-000.pdf
3-102-020Matrix LED Backlight66.5 x 6177.5 x 63 x 2012V DCVörös3-102-020.pdf

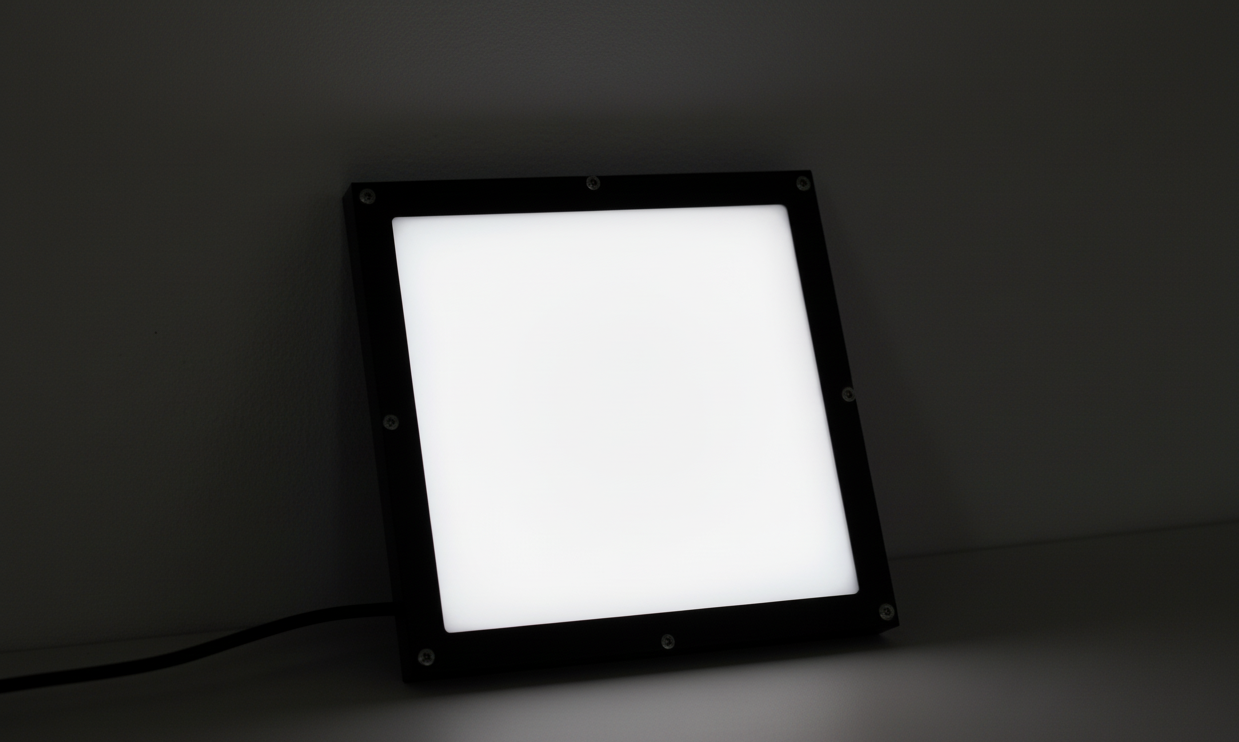

3-201-000Matrix LED Backlight80 x 80100 x 100 x 2024V DCFehér3-201-000.pdf
3-201-600Matrix LED Backlight80 x 80100 x 100 x 2024V DCIR3-201-600.pdf

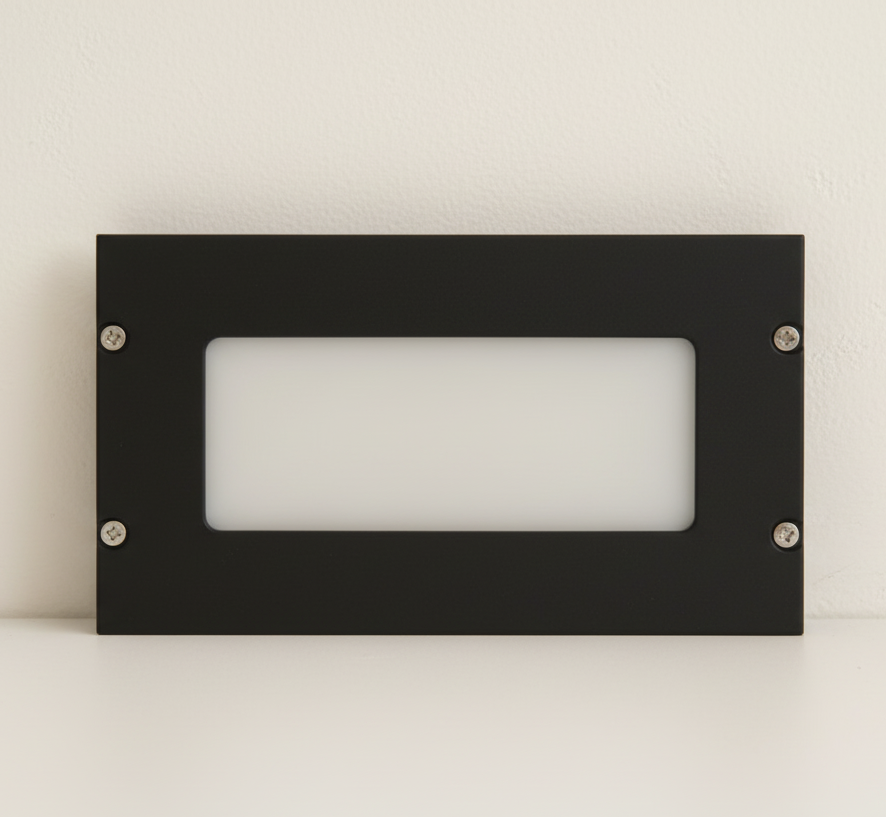

3-202-000Matrix LED Backlight70 x 30100 x 60 x 2024V DCFehér3-202-000.pdf
3-203-000Matrix LED Backlight64 x 22100 x 30 x 2524V DCFehér3-203-000.pdf
3-204-000Matrix LED Backlight100 x 50100 x 50 x 2224V DCInfra3-204-000.pdf
3-204-020Matrix LED Backlight100 x 50100 x 50 x 2224V DCVörös3-204-020.pdf

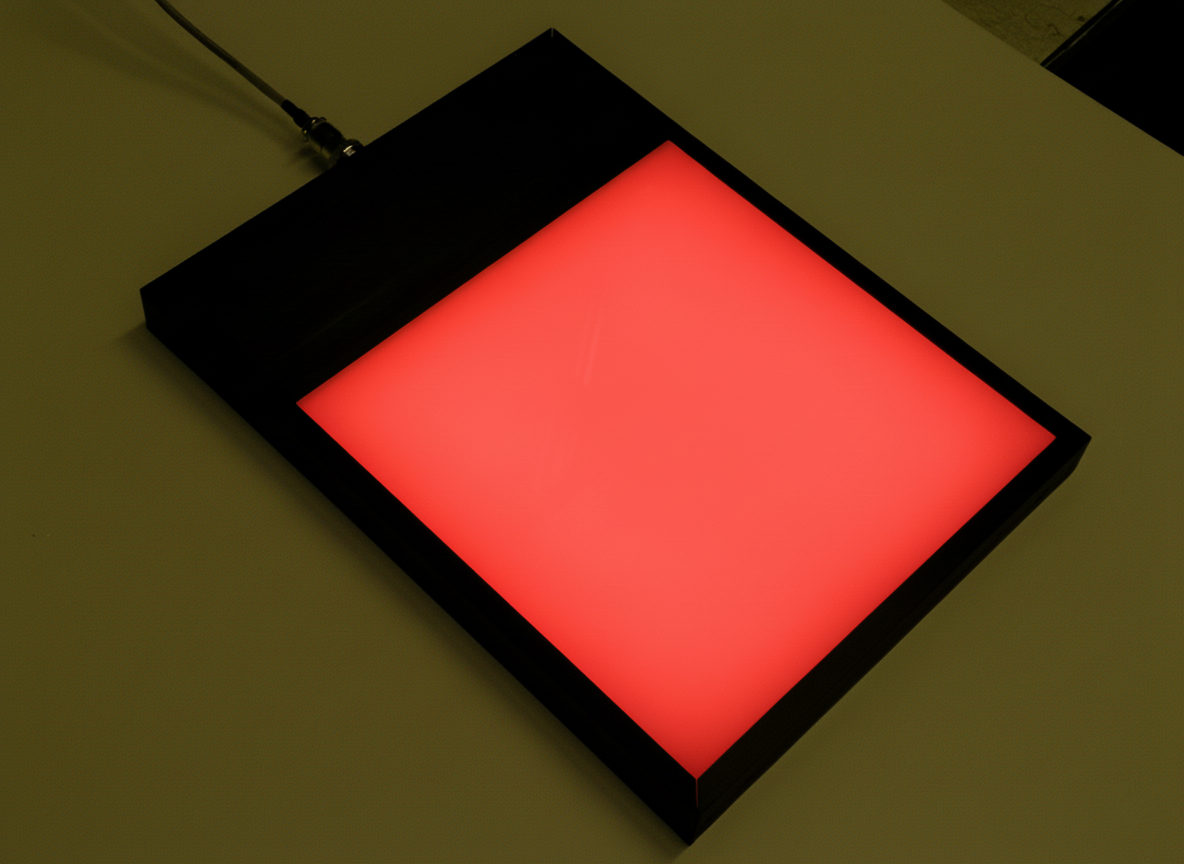

3-204-030Matrix LED Backlight150 x 85160 x 120 x 2024V DCVörös3-204-030.pdf

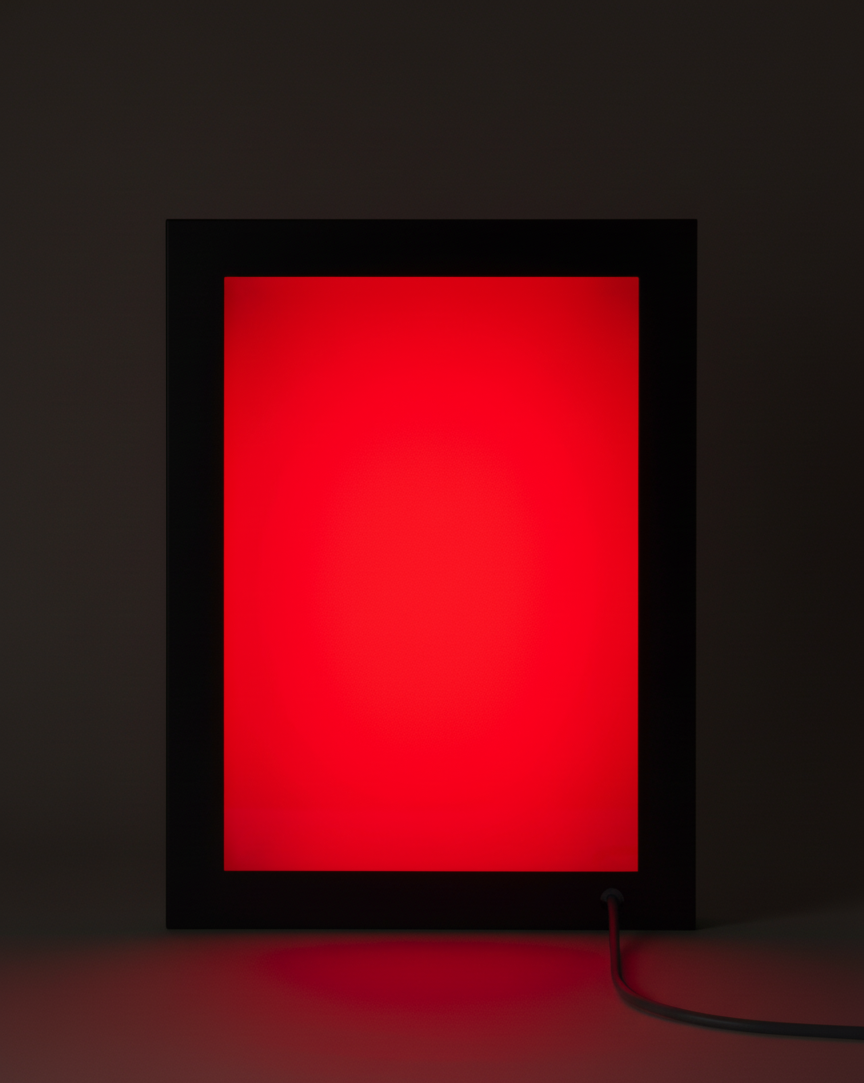

3-207-000Matrix LED Backlight160 x 100190 x 130 x 2524V DCVörös3-207-000.pdf

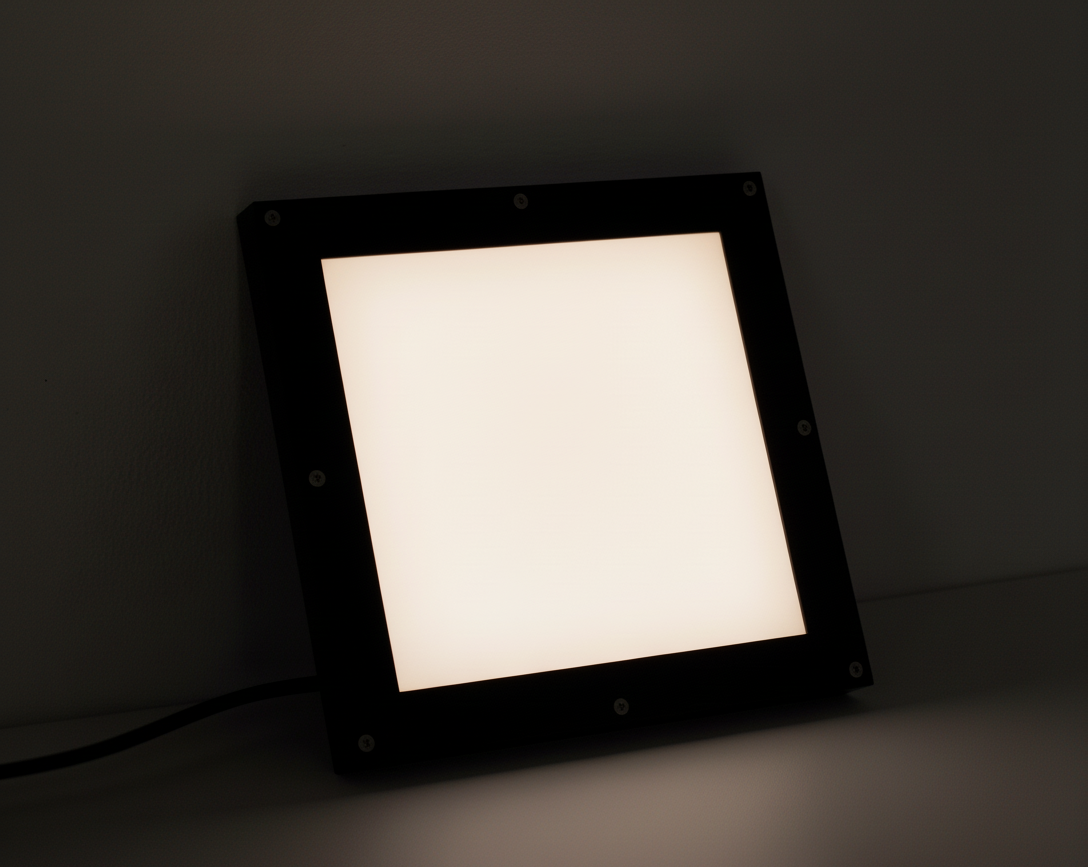

3-211-000Matrix LED Backlight100 x 100130 x 130 x 2524V DCFehér3-211-000.pdf
3-212-000Matrix LED Backlight140 x 140200 x 200 x 3024V DCHidegfehér3-212-000.pdf

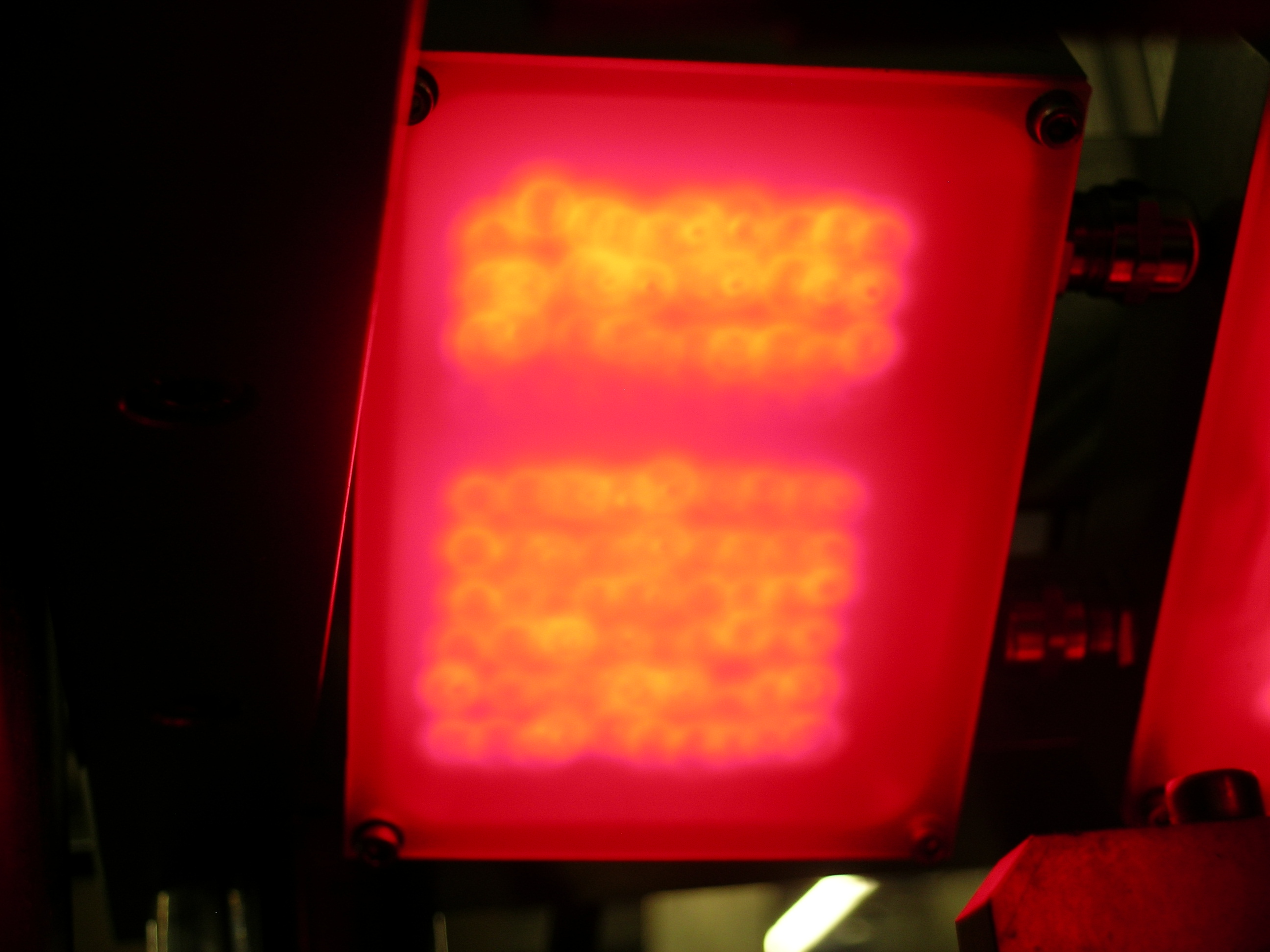

3-213-000Matrix LED Backlight110 x 80110 x 80 x 3024V DCVörös3-213-000.pdf

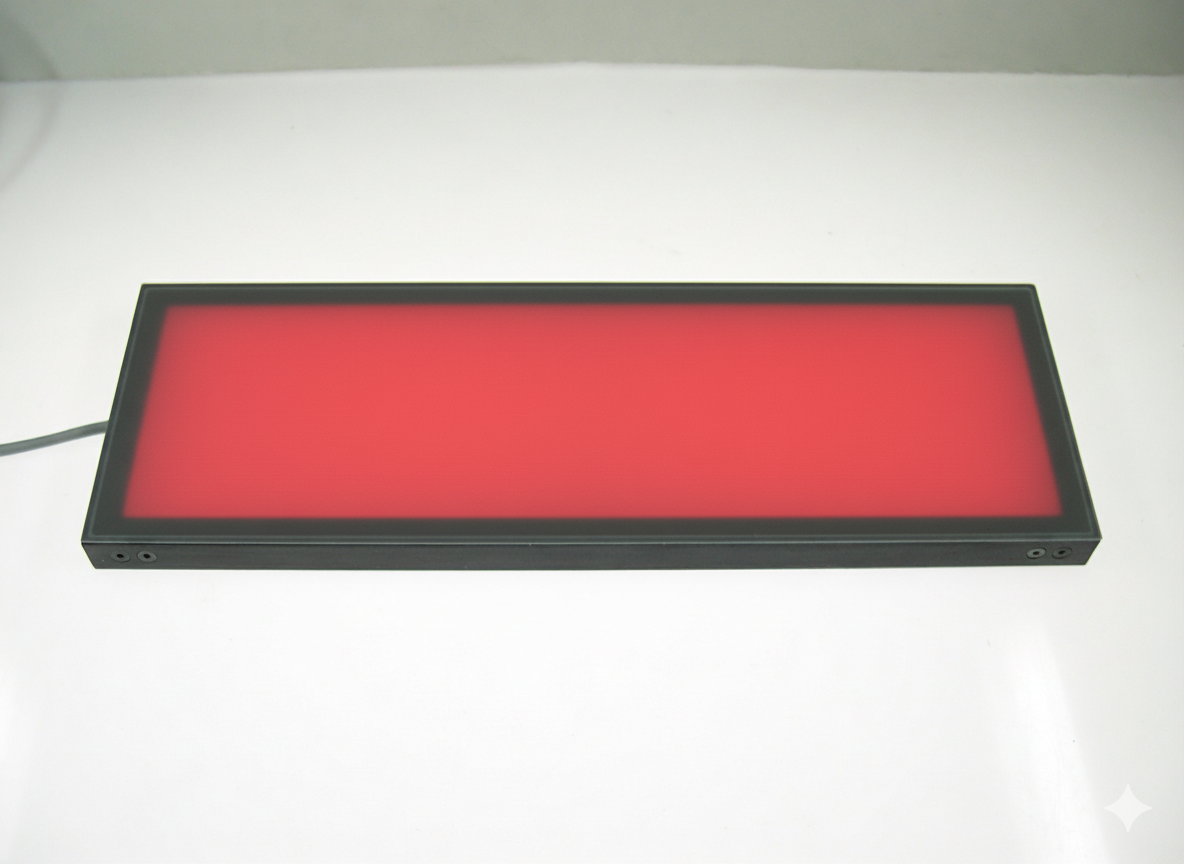

3-214-000Matrix LED Backlight150 x 80160 x 90 x 2212V DCVörös3-214-000.pdf

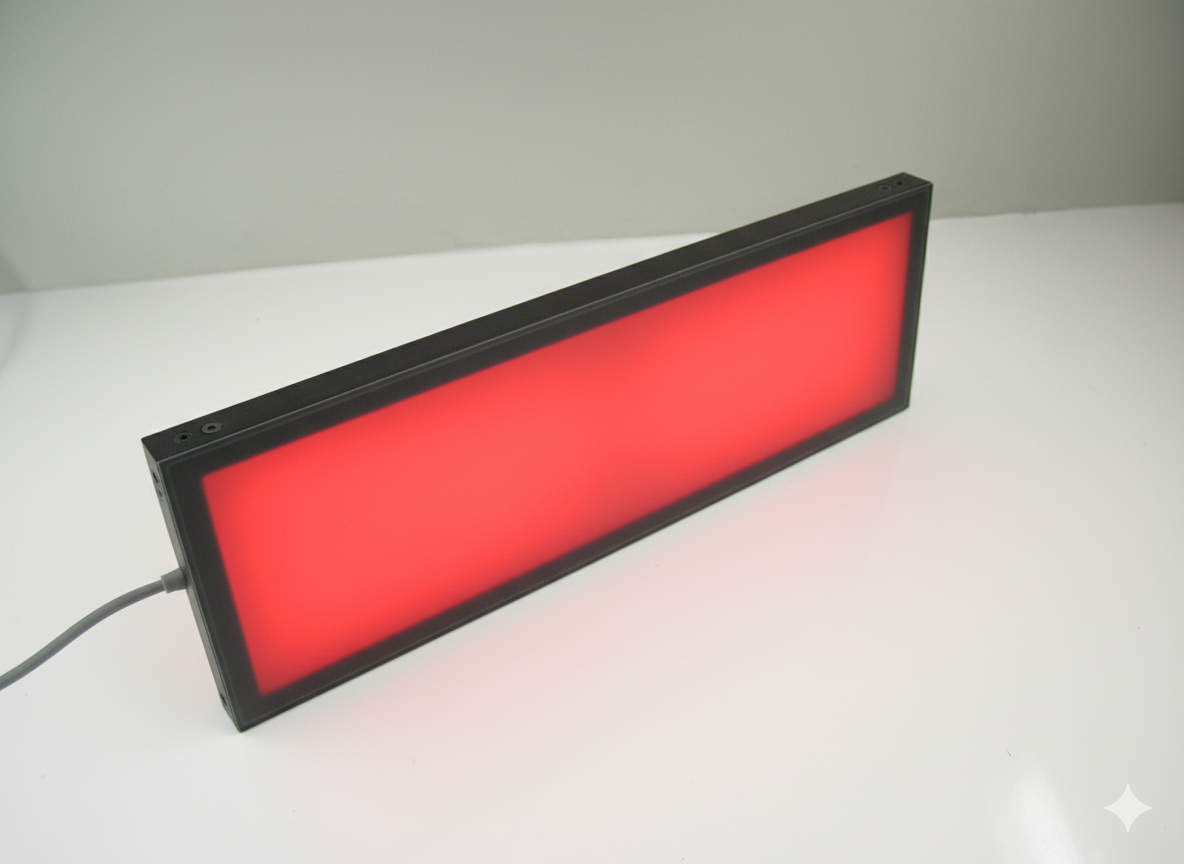

3-214-600Matrix LED Backlight150 x 80160 x 90 x 2324V DCVörös3-214-600.pdf
3-217-000Matrix LED Backlight106 x 106110 x 15024V DCFehér
3-218-000Matrix LED Backlight66 x 24670 x 25024V DCFehér
3-219-000Matrix LED Backlight180 x 180200 x 240 x 8124V DC
260W
Fehér/White
4000K
3-219-000_HU-EN.pdf
- Send your request for a quote to office@omi-optika.hu by clicking on the button next to the product, after filling in the required data or - if it is more convenient - from your own account.
  • white, UV, blue, green, red or infrared (NIR) light
  • power supply: 12VDC, 24 VDC or current generator drive (please specify when ordering)
  • can be ordered with a standard or triggerable power supply
  • continuous or pulse mode (power dependent)
  • extra long life
  • robust, anodized aluminum or plastic housing
  • glass or plastic light field
  • can be used in industrial environment
  • optionally; lighting surface up to the edge of the house on one side
  • custom size or design can be ordered
